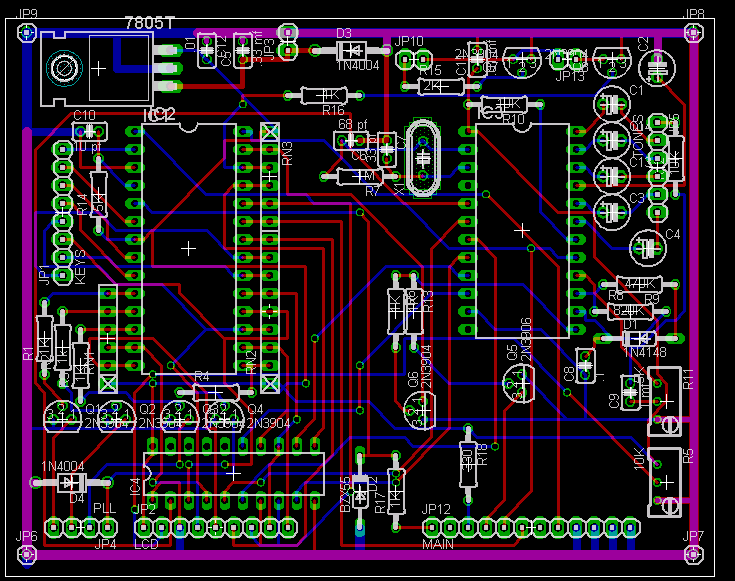

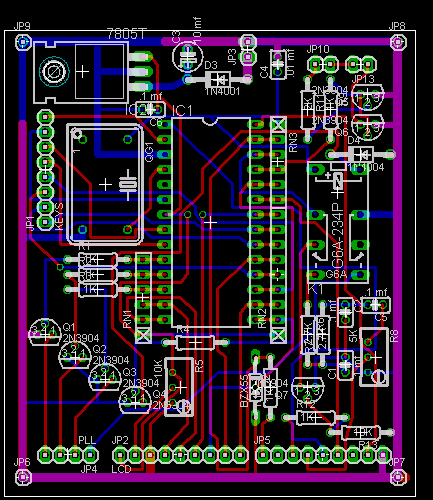

This board facilitates the conversion of GE series commercial radios for 'frequency agile' use. As such, it contains the Microprocessor (which emulates CTCSS encode / decode functionality), and the buffer transistors to interface with the 'target' radio. The circuitry is contained on a high quality, silk screened, solder masked, two sided board measuring 3 by 2.75 inches. It contains its own 12VDC to 5VDC voltage regulator (LM7805).

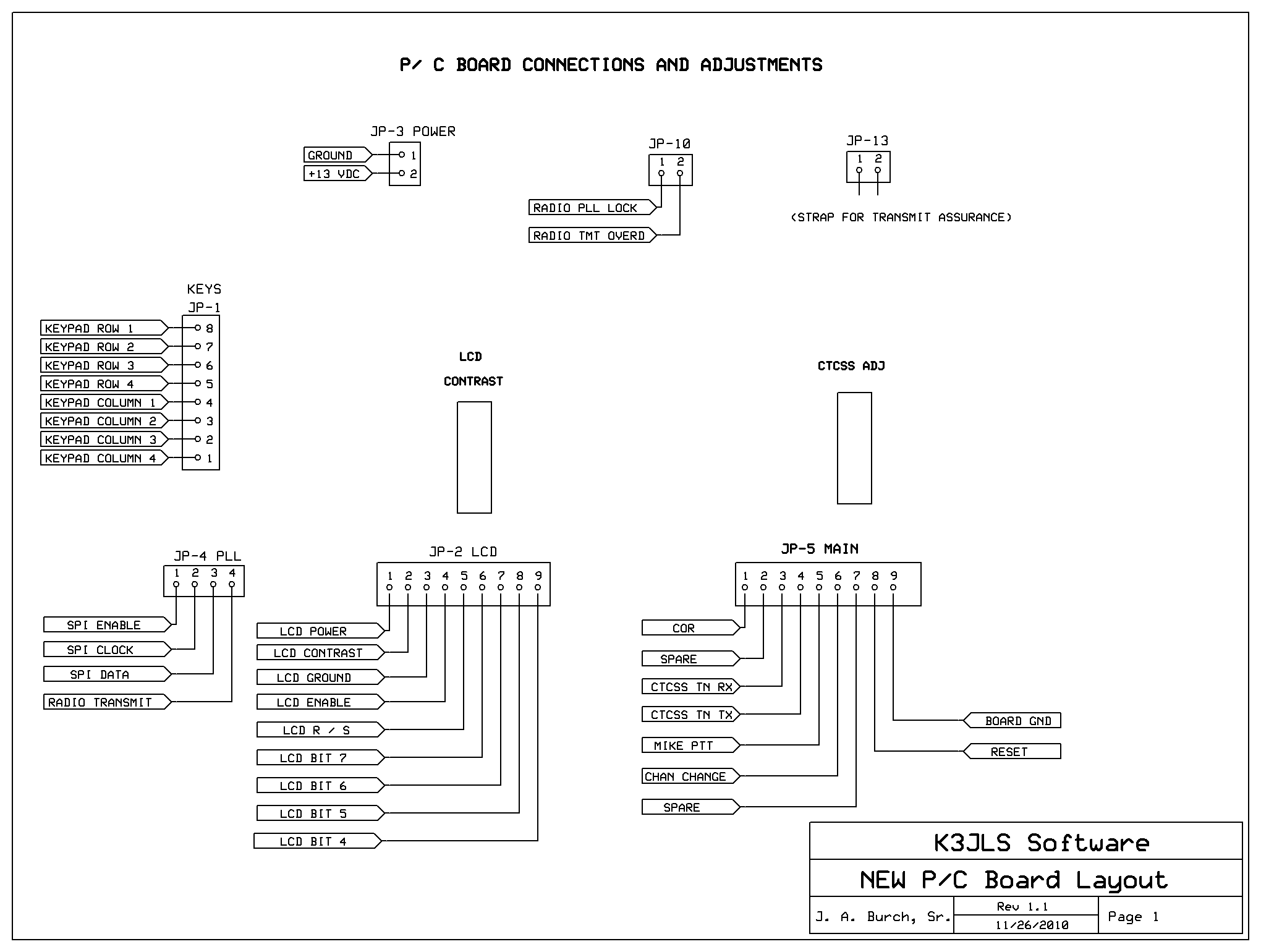

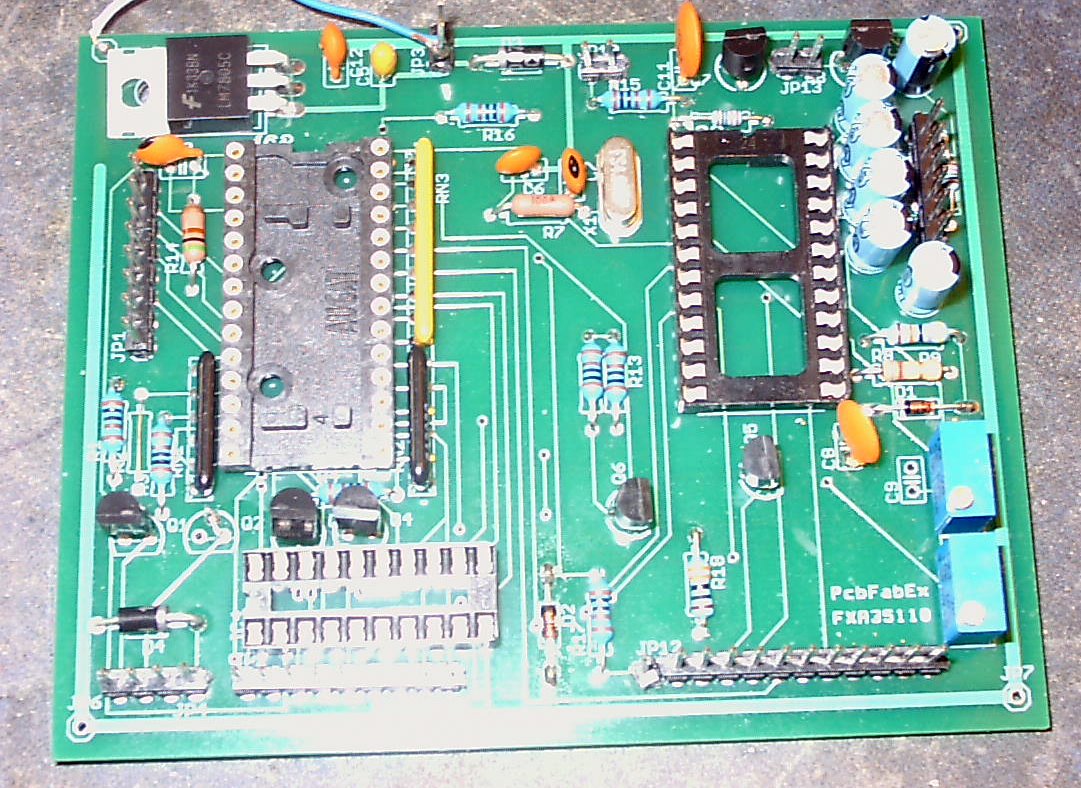

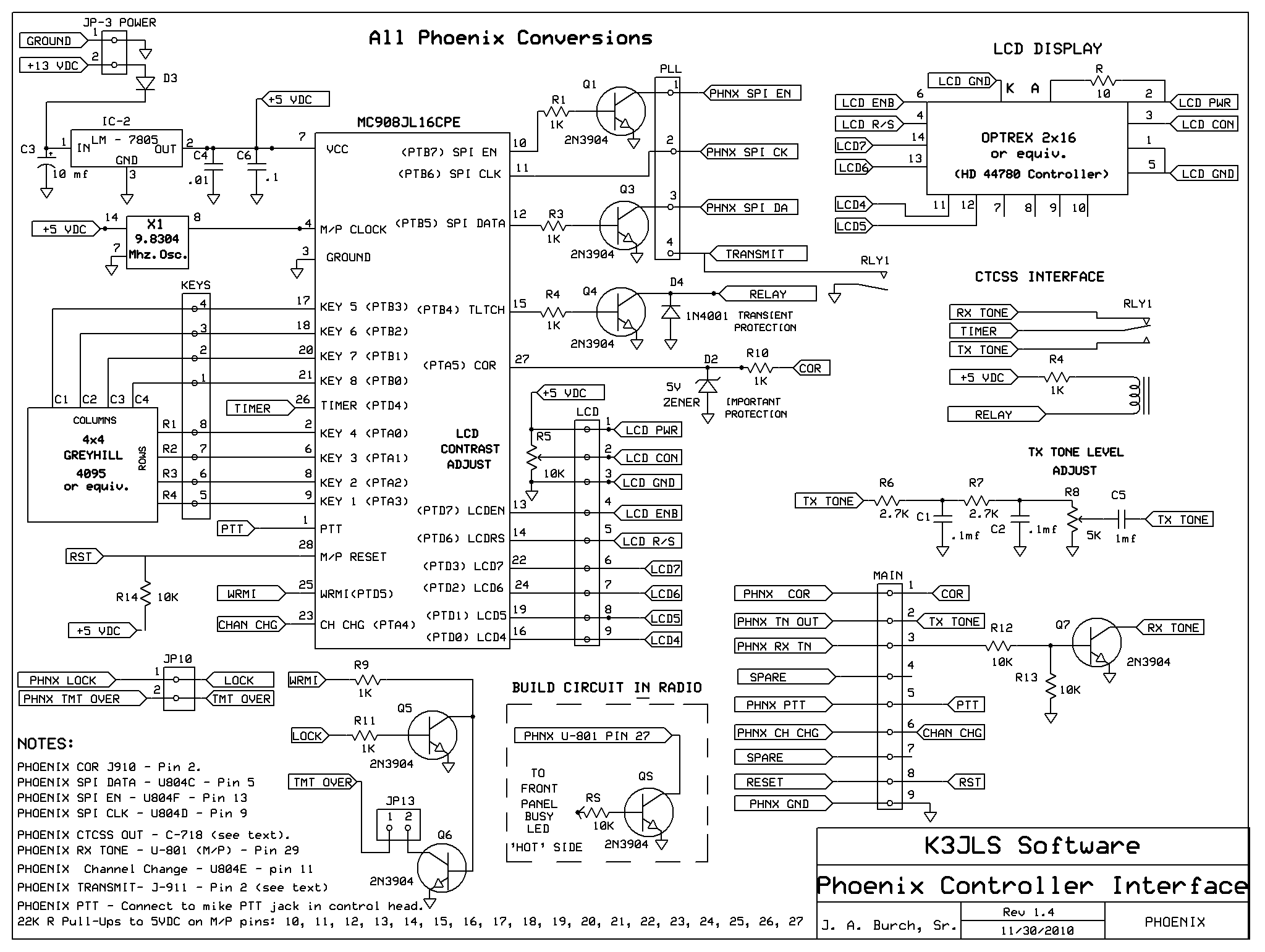

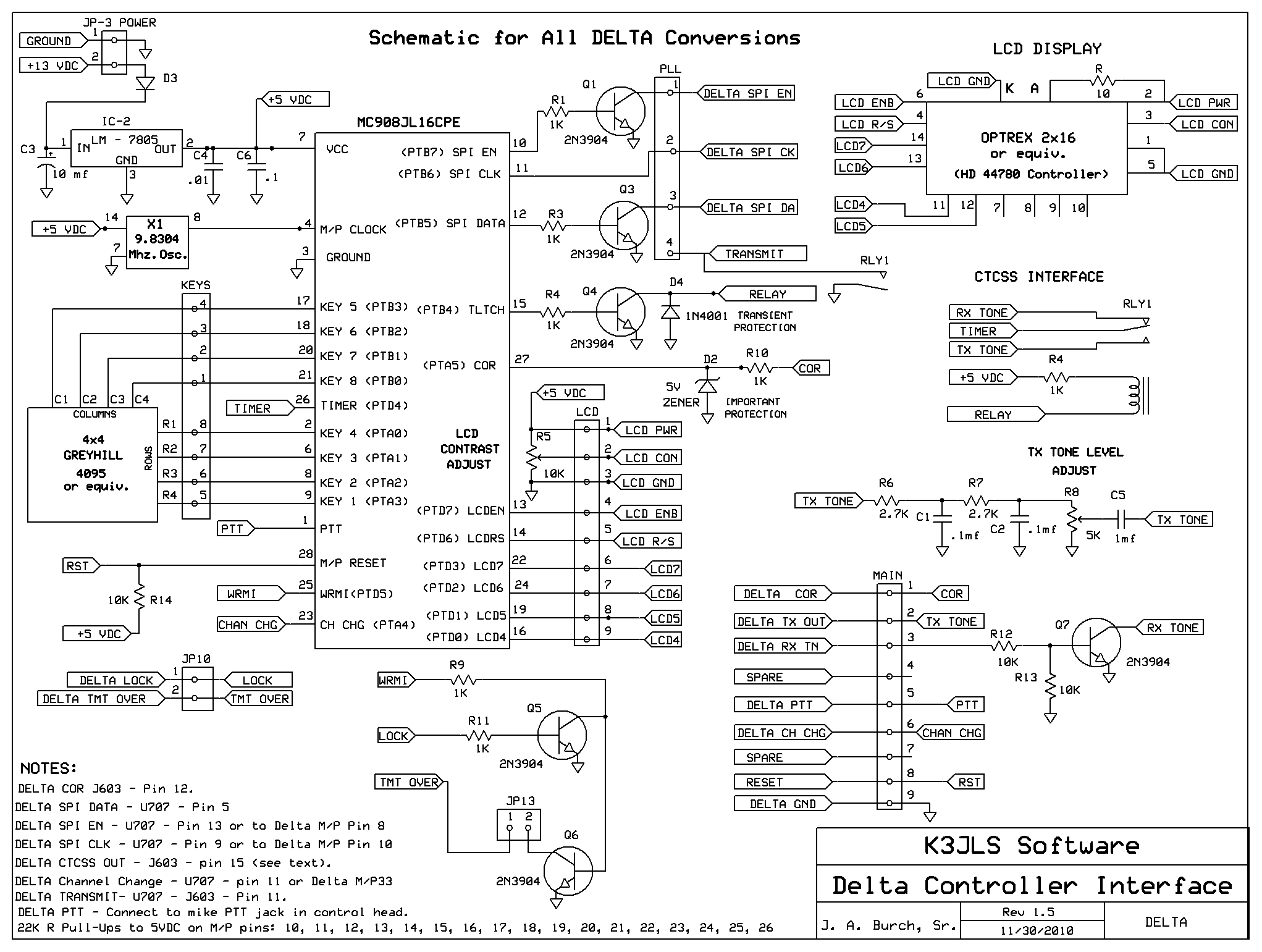

Sequential construction steps are shown below along with descriptions of each of the components. Components are installed in 'groups', as shown::
Before Starting|
Component / Value |
Function |
Comments / Action |
| 28 Pin IC Socket | MC908JL16CPE | Ensure That ALL pins route through the board. |
| JP-13 PWR Main - Pin 2 | +5VDC Output | Powers Logic Circuits |
| C5 - 10 mf | Decoupling capacitor | - |
| IC-2 | +5 VDC Regulator | TO-220 device is required. |
| X1 - 9.8304 Mhz Osc | M/P Clock | Oscillator in a 'can' - Note that the 'dot' is positioned in the upper left corner. |
| D3 | Reverse Polarity Protection | Please don't omit. |
| JP-1 - (KEYS) | Keypad Interface | 8 pin terminal strip |
| RN-3 - (5) 22K Network | M/P Pull Ups | Strip Resistor - Check 'dot' common side - if in doubt, verify with meter. |
| RN-2 - (8) 22K Network | M/P Pull Ups | Strip Resistor - Check 'dot' common side, as above. |
| RN-1 - (5) 22K Network | M/P Pull Ups | Strip Resistor Network - Check 'dot' common side, as above. |
| R1 - 1K | Current limiter | - |
| R2 - 1K | Current limiter | Needed for MVS conversion only - strap out for others. |
| R3 - 1K | Current limiter | - |
| R4- 1K | Current limiter | - |
| R6- 2.7K | A/D Converter | For CTCSS |
| R7- 2.7K | A/D Converter | For CTCSS |
| C1 - .1 mf | A/D Converter | For CTCSS |
| C2 - .1 mf | A/D Converter | For CTCSS |
| Q1 - 2N3904 (NPN) | SPI Enable | - |
| Q2 - 2N3904 (NPN) | SPI Clock | Needed for MVS Conversion only - strap base to collector if otherwise. |
| Q3 - 2N3904 (NPN) | SPI Data | - |
| Q4 - 2N3904 (NPN) | Transmit | - |
| D4 - 1N4001 | Reverse Surge Protection | Protects Q4 from an EMF 'spike' when PTT is released - DON'T OMIT |
| RLY 1 | DPDT Relay | For PTT and CTCSS Timer Transmit / Receive Isolation |
| JP-4 - (PLL) | Terminal Strip | Connects SPI and Transmit to Radio. |
| JP-2 - (LCD) | Terminal Strip | LCD Connections |
| D2 - 5.1 Volt Zener | M/P Protection | Limits COR / CAS voltage to M/P - protects M/P - DON'T OMIT |
| R10 - 1K | Current limiter | Limits current on COR (CAS) lead prior to D2 clamping action. |
| JP-12 - MAIN | Primary Radio Interface | Interface connections to radio. |
| Q5 - 2N3904 (NPN) | PLL Unlock Inhibitor | Blocks Transmit Override function if radio's PLL is unlocked. |
| Q6 - 2N3904 (NPN) | Transmit Override | Insures that the target radio will transmit when requested to do so (if PLL locked) |
| Q7 - 2N3904 (NPN) | Receive CTCSS Buffer | Buffers CTCSS signal (square wave) from target radio |
| C5 - .1 mf | Coupling | CTCSS Out |
| JP-13 | Terminal Strip | To be strapped later if the radio doesn't transmit reliably. |
| JP-10 | Terminal Strip | Connects PLL Lock and Transmit Override leads from radio |
| R5 - 10K Potentiometer | LCD Contrast Control | - |
| R8 - 5K Potentiometer | CTCSS Level Adj. | - |
| R13 - 10K | Current limiter | Q7 'pull down' |
| R12 - 10K | Current limiter | Limits current flow to the base of Q7. |
Apply power (12 VDC) to the PWR - BU (JP3 - Pin 2) and ground to the VSS lead (JP3 - Pin 1).
Verify +5VDC on IC-1 (M/P), pin 7, and ground on M/P pin 3.
Verify +5 VDC on M/P pins 11, 13, 14, 16, 17, 18, 19, 20, 21, 22, 23, 24, 28 - checking for crosses.
Verify approximately 1.57 volts on pin 26 (caused by the bias on Q7).
Verify approximately .84 volts on pins 10, 12, and 25.
Verify +5VDC on the LCD terminal strip (JP2) pins 1, 4, 5 , 6, 7, 8 and 9. There will also be some positive potential on JP2, pin 2, depending upon the setting of the LCD Contrast Control - R5. Adjust R5 and verify voltage change on pin 2.

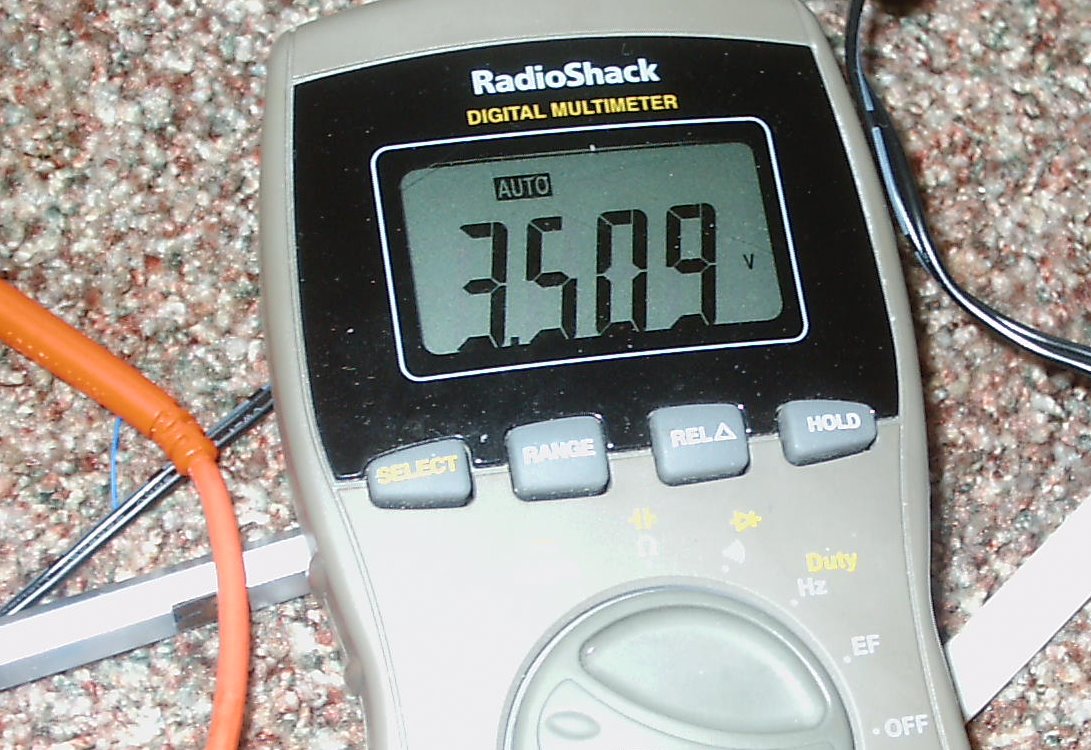

Verify about 3.7 volts on Main Pin 1 (COR).
Verify +5 VDC on MAIN (JP-12) pin 6. When done, switch off the power.
Connect the 2x16 LCD display. (Any LCD with the HD44780 controller will work). Don't remove any protective plastic strip from the front until the LCD is mounted and you are ready to place the bezel / plexiglass over it.

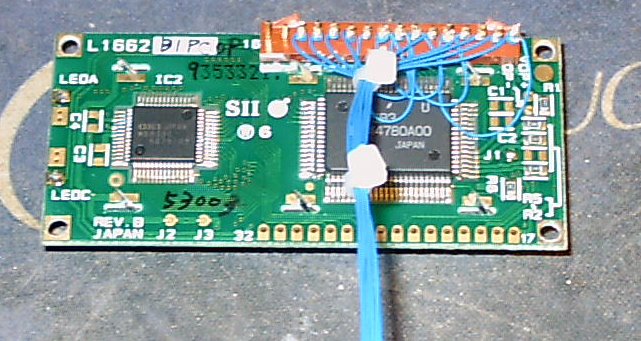

If not already equipped with wire wrap pins, solder wire wrap pins (short pieces of stiff wire) to each of the LCD's connection points. Don't use too much solder as this could 'contaminate' the display. These will be used to connect the LCD's inputs to the P/C board. Check for 'shorts'.
Determine the length of the wire required to connect the LCD in your control head to the M/P board which will probably be mounted on the rear of the enclosure. Leave enough wire for subsequent servicing.

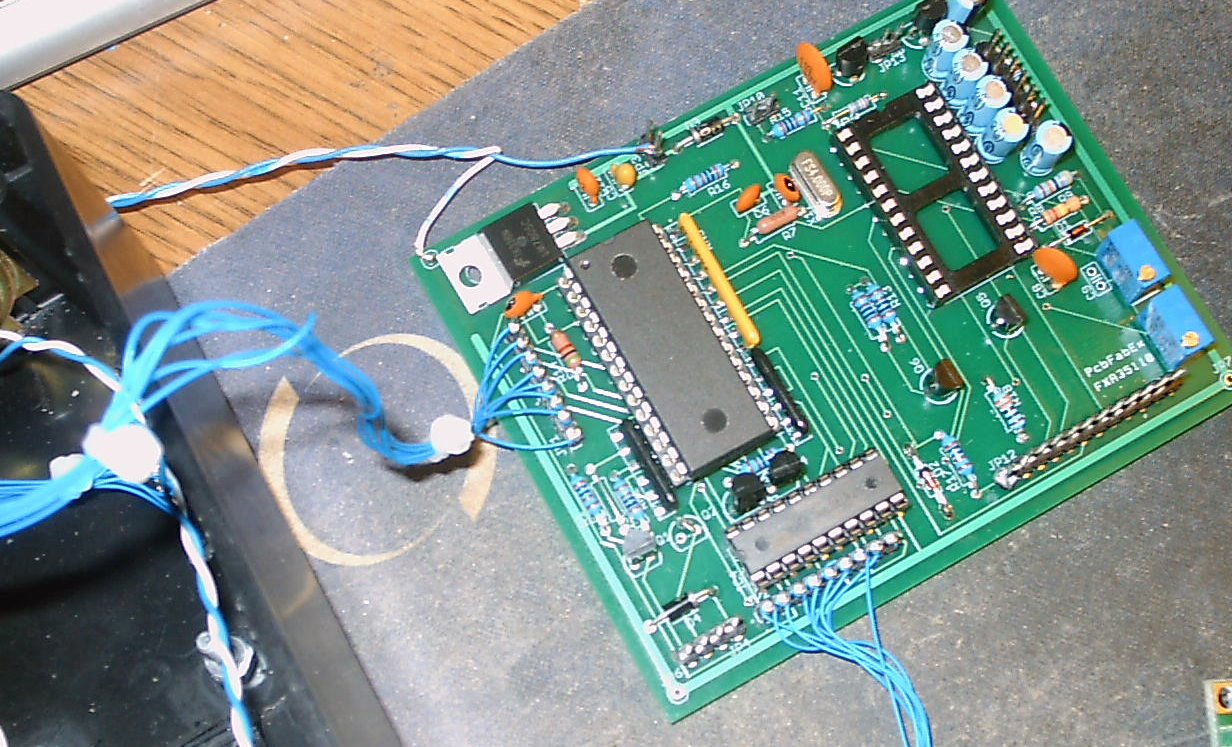

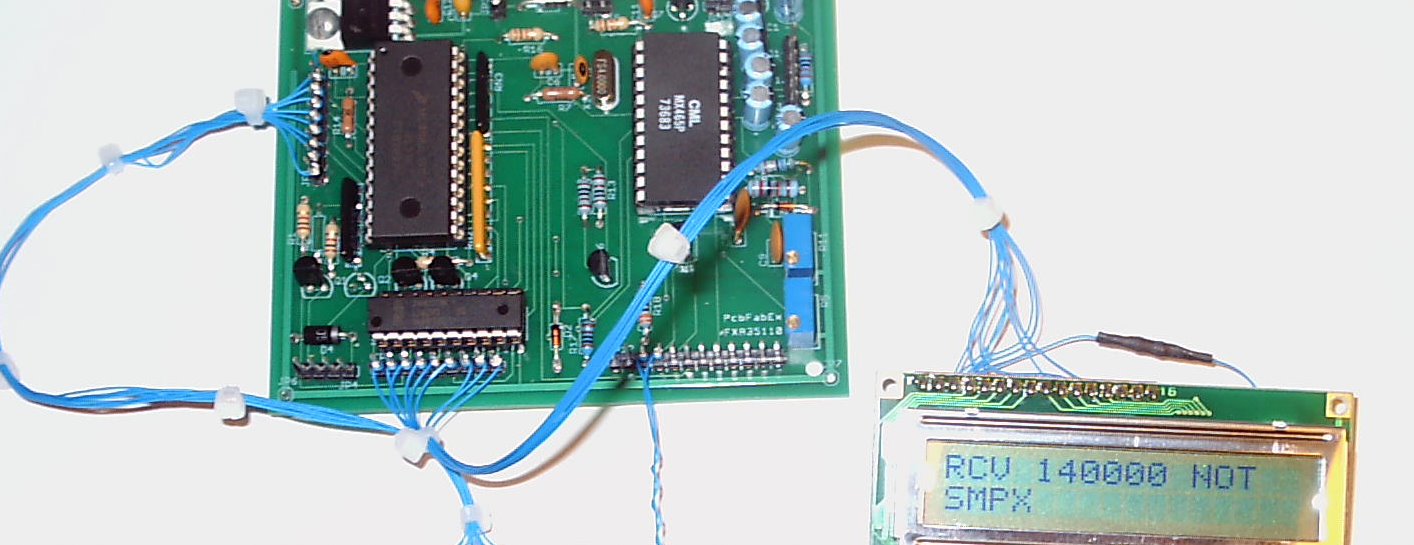

Connect the LCD to the P/C board using 30 gauge (wire wrap) wiring. Before applying power, check for crosses between any of the adjacent pins on the LCD display, and that the +5VDC (VCC) lead is connected to LCD pin 2, and that ground (VSS) is connected to pin 1.
Also, determine the value of the LCD backlight resistor. I've used resistors around 10 ohms. Check here for additional information. Encapsulate the backlight resistor in heat shrink tubing.
c) Connecting the Key Pad - An Integrated Unit is a Good Choice
Make the 8 wire wrapped connections between the P/C board and the keypad. Here are some suggestions on determining the correct pin-outs for those surplus / unmarked keypads..
Before installing the M/P, apply power to the P/C board and verify that the LED inside the LCD lights. Adjust the contrast resistor until you see dim rectangles across the top of the first row of the LCD.
With the power off, and following CMOS handling precautions, remove the M/P from it's protective conductive foam. Ensure that all pins are straight, and carefully insert the M/P into its socket, 'rocking' it side to side.
Note: Ensure that the pins on the M/P are perpendicular to the IC so that they will seat properly. One way to make this alignment is to hold the IC pins against your workbench while aligning the IC perpendicular to it. This aligns all the pins on one side at the same time.
Operational Tests - For All Frequency Applications

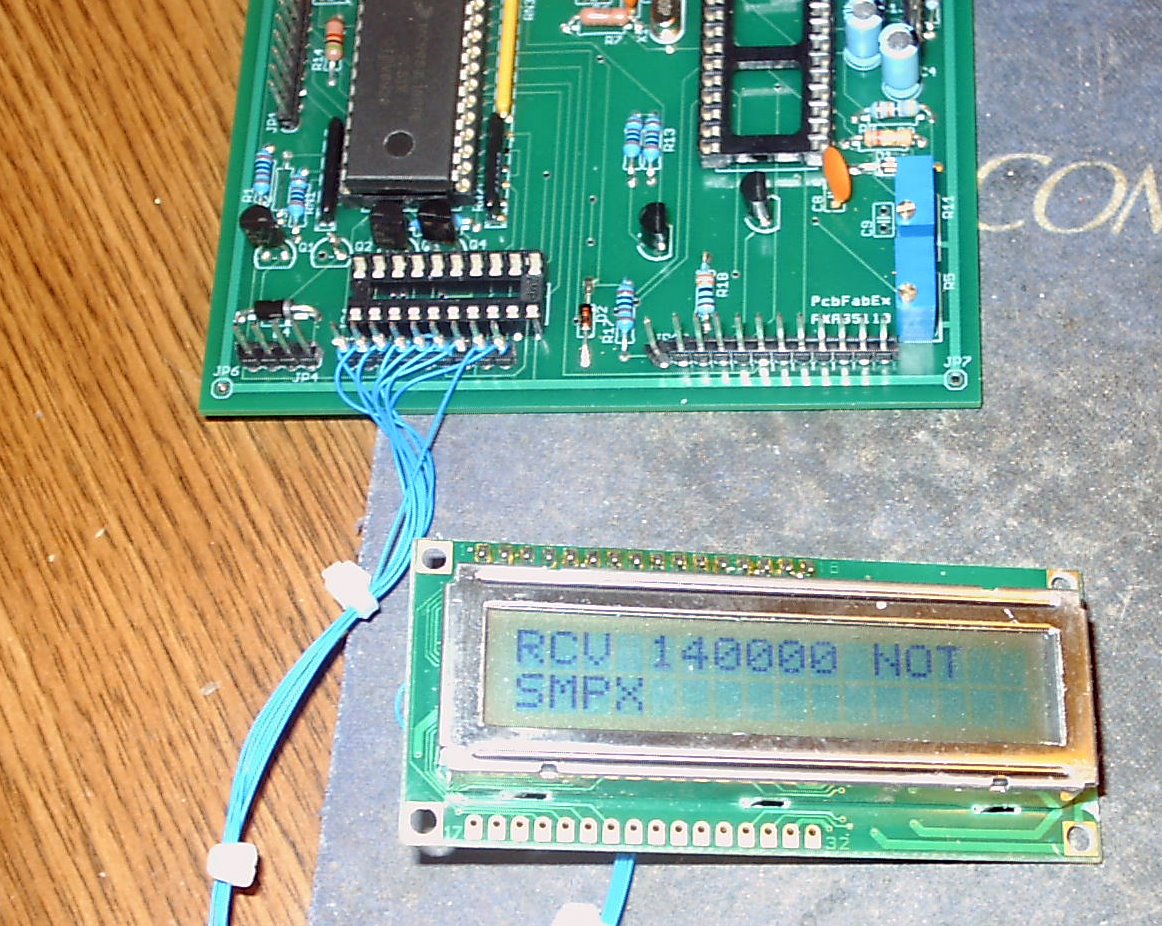

Turn the power back on. The LCD will briefly display the current software version (T0.02). Adjust the LCD contrast control (R5), as required.
Note: Turn the power off for about 30 seconds and power the board up again. Take note of the Channel Group shown. If it is set to 1, then nothing else need be done. However, if the LCD shows something other than 1 (perhaps an odd character), you need to reprogram the Channel Group to 1. You can do this by entering B and then 1, following the prompts that will be displayed.
If the LCD displays KEY!, you've simultaneously depressed two keys. Or the wiring between the keypad and the M/P board may be incorrect. Valid keystrokes are closures between ONLY TWO LEADS, one in the row, and the other in the column group. Recheck your wiring. If you have a Key Error, use the D Key to clear it.
Enter another frequency between 140 and 184 Mhz. For the VHF and UHF, it is not necessary to enter the leading digit (i.e, the 1 or the 4). Since only 5 khz. steps are allowed in the VHF mode setting, the M/P won't accept anything beside 0 or 5 as the last digit. If another digit is entered, the M/P will overwrite this entry to a 0, and set the frequency. Similar logic applies to 12.5 khz (UHF).
Note: 'Stepping' the frequency up and down is done by either the * or the # keypad keys.
Ground the Mike PTT lead and note that BAND shows on the LCD. This means that the transmission is not allowed, unless a frequency between 144 - 149 Mhz has been entered. The program allows transmissions only on authorized USA amateur frequencies.
