Low Power Relay Switching - GE Phoenix
Using
a relay to remotely switch the radio from your control head is easily
accomplished A suitable Radio Shack SPDT relay (275-248A) with a
12 volt coil and contacts that will handle 10 amps will do nicely.
It's durable and small, and it can be epoxied to one of the
chassis side walls.
The first thing to do is to place a diode across the relay windings.
This diode is needed to clamp on the transient voltage spike that
will be generated by the electromagnetic core of the relay when the
relay is released. Without this diode, this voltage spike could
theoretically damage some of the electronic compoments either in the
radio, or in the control head. An ounce of prevention...........

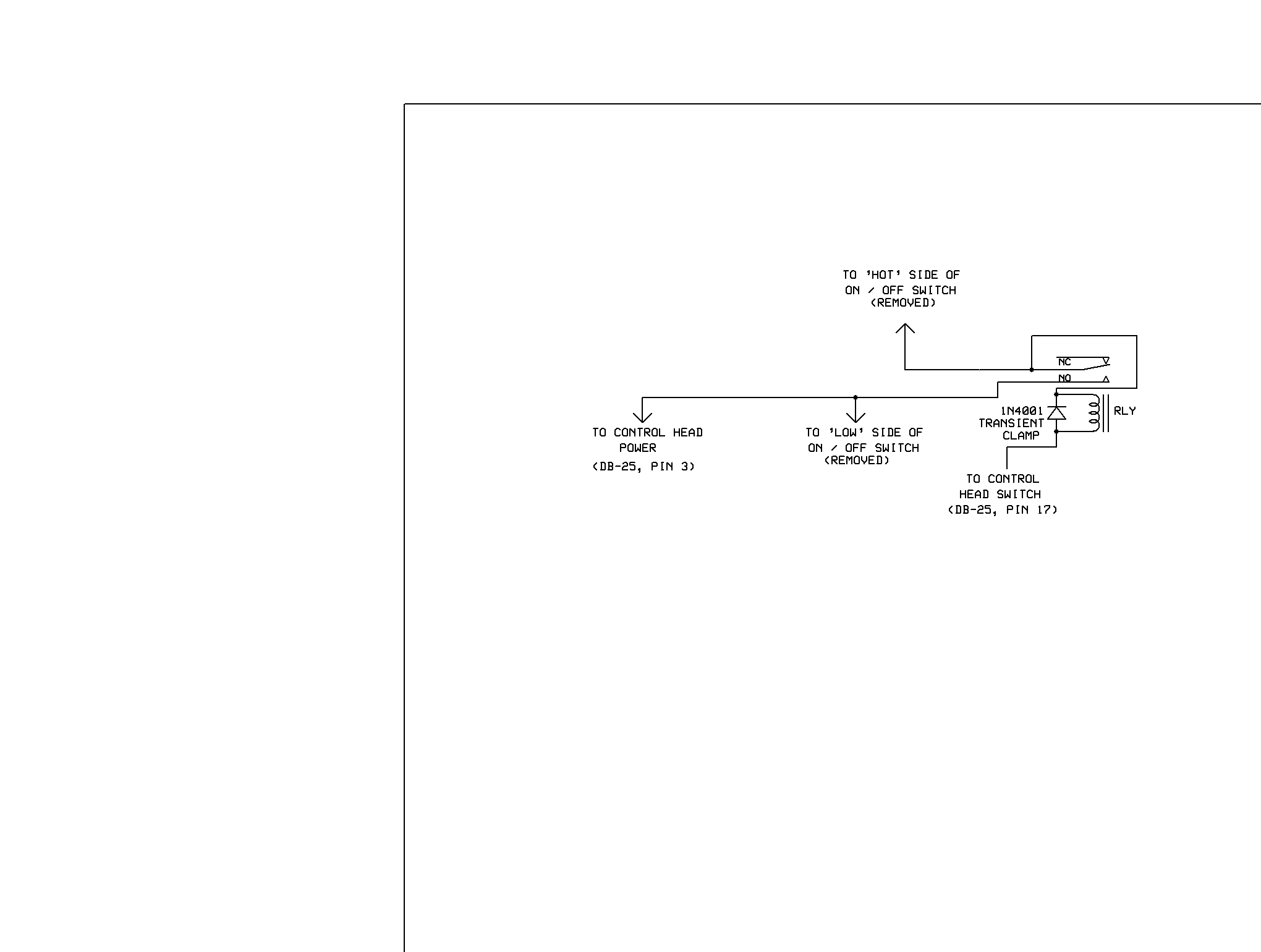

Here is how the relay is wired up:
- Connect
one relay winding to the 'hot' side of the old ON / OFF switch.
The hot side can be verified by connecting your meter to the
radio's positive supply lead. Be mindful of the polarity of the
diode.
- Connect the 'swinger' contact of the relay to the positive supply, as well. This is a simple jumper on the relay.
- Connect
the normally open contact of the relay to both the other side of the ON
/ OFF switch and to the lead that will be powering the control head -
DB-25, pin 3.
- Connect the other end of the relay winding to the control head switch - DB-25, pin 17.
- When done, verify the connections with your meter.
